LT-APO OBJECTIVES | Low Temperature Objective

The LT-APO Cryogenic Objective Lens is a cryogenic APO objective lens (IR – NIR – VIS) designed and manufactured by NanoMagnetics. It can be used in various types of cryogenic detection optical instruments.

LT-APO OBJECTIVES | Low Temperature Objective

Specifications

Clear Aperture (CA): 4.7 mm
Focal Length (FL): 2.8 mm
Numerical Aperture (NA): 0.82
Working Distance (WD): 0.95 mm (1.45 mm)
AR coating (> 80% transmission):
- VIS: 400 - 1,000 nm
- NIR: 400 - 1,000 nm
- IR: 600 - 1,550 nm

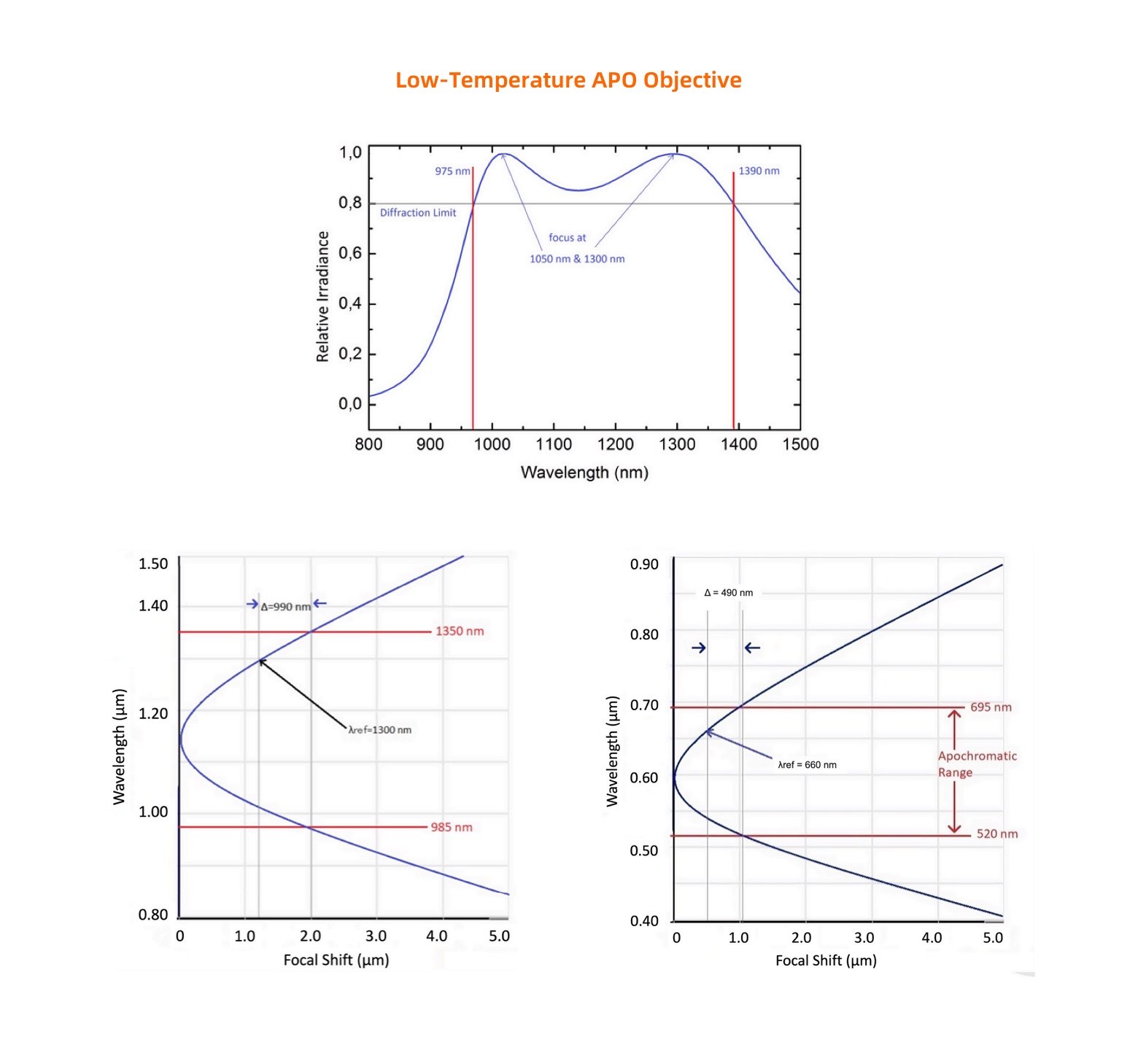

Apochromatic Range (Δf < +/- ):
- VIS: 540-780 nm
- NIR: 650 - 970 nm
- IR: 985 - 1,350 nm
Environment: Low temperature, high magnetic fields, high vacuum
