Moxtek | Small X-ray Tube
Small X-ray tubes are mainly used in handheld and portable X-ray Fluorescence (XRF) spectrometers. We can provide small X-ray tubes with different target materials and external dimensions.
Small X-ray tubes are mainly used in handheld and portable X-ray Fluorescence (XRF) spectrometers. We can provide small X-ray tubes with different target materials and external dimensions.

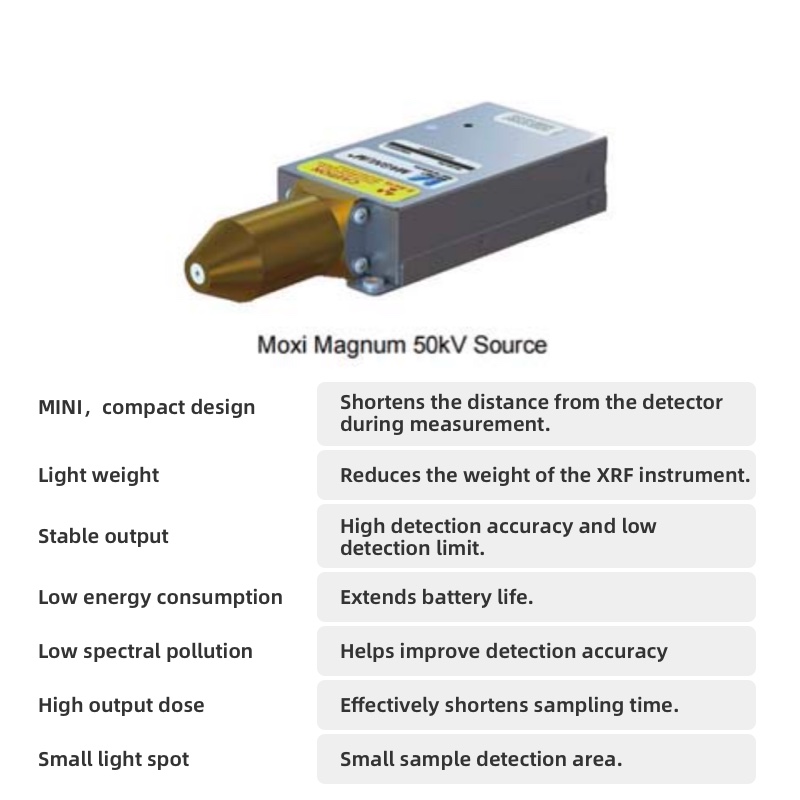

TUB00082/83(50KV 4W) series X-ray Tube
The TUB00082/83 Series X-ray Source is a compact, low-power device that integrates a high-voltage unit with an emitter. It is designed for various XRF (X-ray Fluorescence) applications, including handheld, portable, and benchtop instruments.
FEATURES
Tube Type: Metal-Ceramic Tube
Operating Temperature: -10℃ to +50℃
Storage Temperature: -40℃ to +85℃
Weight: 350 grams / 350g
Optional Target Materials: W, Ag, Rh
Tube Voltage: 4-50KV
Tube Current: 0-200μA
Focal Spot Size: 400μm
Output Power: Maximum 4W
Applications
Material Characterization and Identification (XRF)
Classification of Metals and Alloys
Mining and Geology
Environmental Analysis
The paint contains lead
Management (RoHS/WEEE)
Art and Archaeology

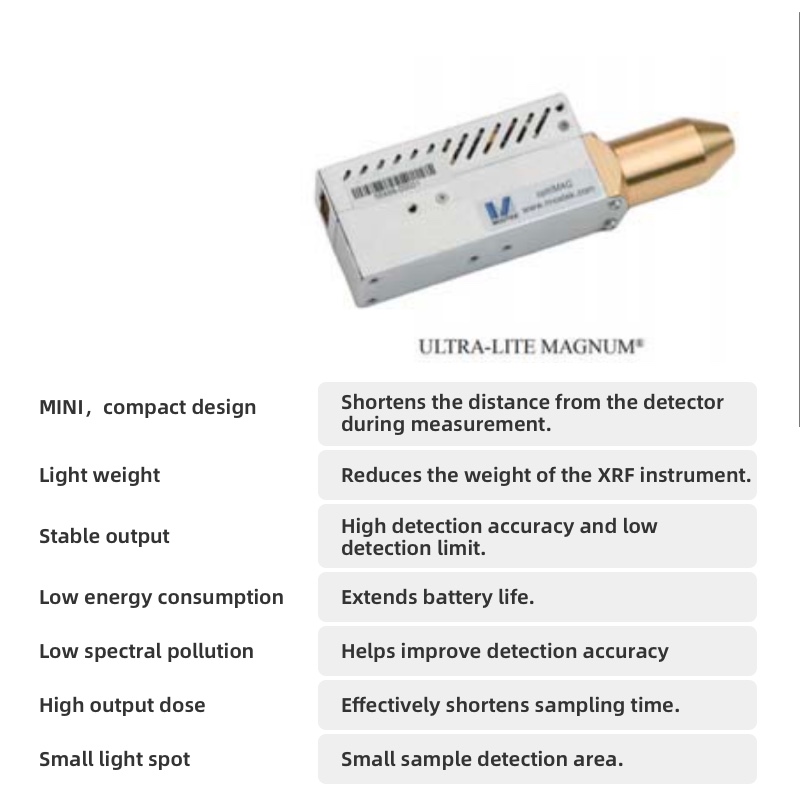

TUB00125 (50kV 4W) Series Tubes
TUB00125 (50kV 4W) Tube is our current smallest and lightest X-ray tube source, as well as a high-voltage X-ray source specifically designed for handheld XRF instruments on the market. Its high performance, reliability, and low cost make it an ideal choice for state-of-the-art handheld instruments.
FEATURES
Tube Type: Metal-Ceramic Tube
Tube Type: Ceramic Tube
Storage Temperature: -30℃ to +85℃
Weight: 250 grams / 250g
Optional Target Materials: W, Rh, Ag, Pd, Mo
Tube Voltage: 4-50KV
Tube Current: 5-200μA
Focal Spot Size: 500 to 800μm FWHM (typical)
Output Power: Maximum 4W
Applications
Material Characterization and Identification (XRF)
Classification of Metals and Alloys
Mining and Geology
Environmental Analysis
The paint contains lead
Art and Archaeology

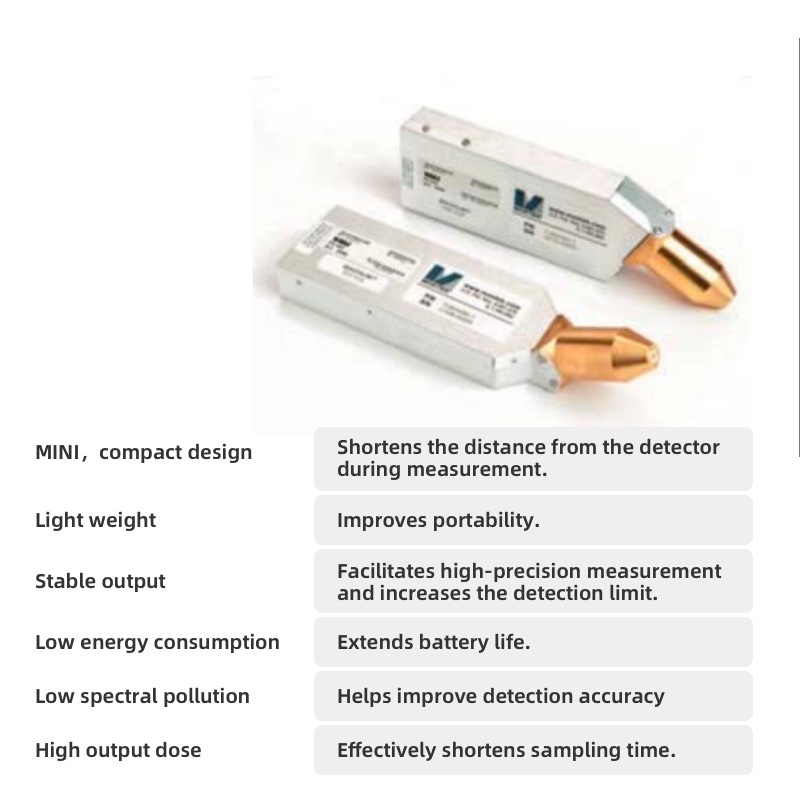

TUB00190 (50kV 4W) Digital High-Voltage X-Ray Tube
TBU00190 (50KV 4W) Digital High-Voltage Lamp Tube is an X-ray tube with highly precise voltage and a high-voltage power supply (digital high-voltage control), specifically designed for handheld XRF instruments. Within the temperature range of 0℃ to 45℃, the voltage accuracy is ±0.25kV.
FEATURES
Tube Type: Ceramic Tube
Tube Type: Ceramic Tube
Storage Temperature: -30℃ to +80℃
Weight: 310 grams / 310g
Optional Target Materials: Ag, W, Au, Pd, Ag, Rh
Tube Voltage: 5-50KV
Tube Current: 5-200μA
Focal Spot Size: Typical ~800μm
Output Power: Maximum 4W
Applications:
Material Characterization and Identification (XRF)
Classification of Metals and Alloys
Features
Mining and Geology
Environmental Analysis
The paint contains lead
Management (RoHS/WEEE)
Art and Archaeology
Research and Development

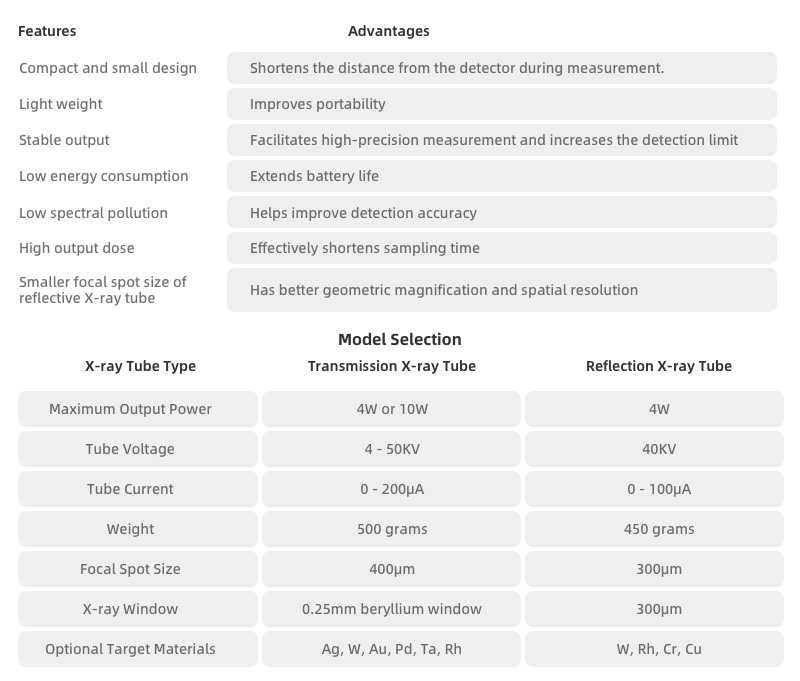

TUB00045/46 and TUB00050 Series Tubes
For products in the TUB00045/46 and TUB00050 series, the tube is connected to the high-voltage power supply via a high-voltage cable. The tubes are divided into transmission-type X-ray tubes and reflection-type X-ray tubes.

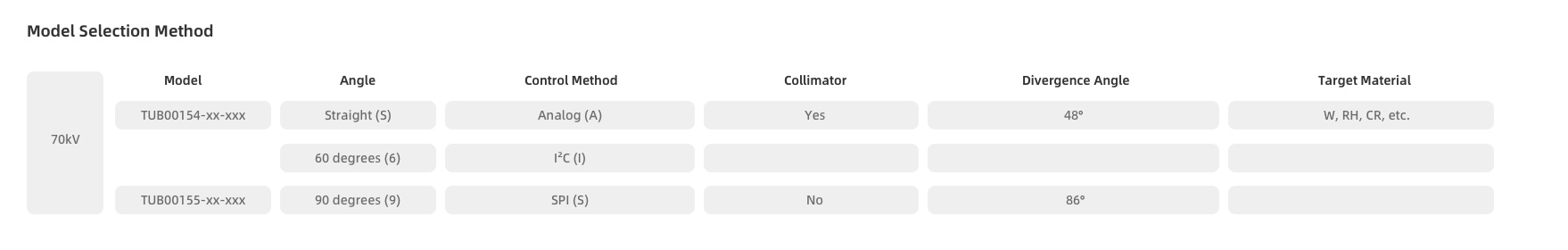

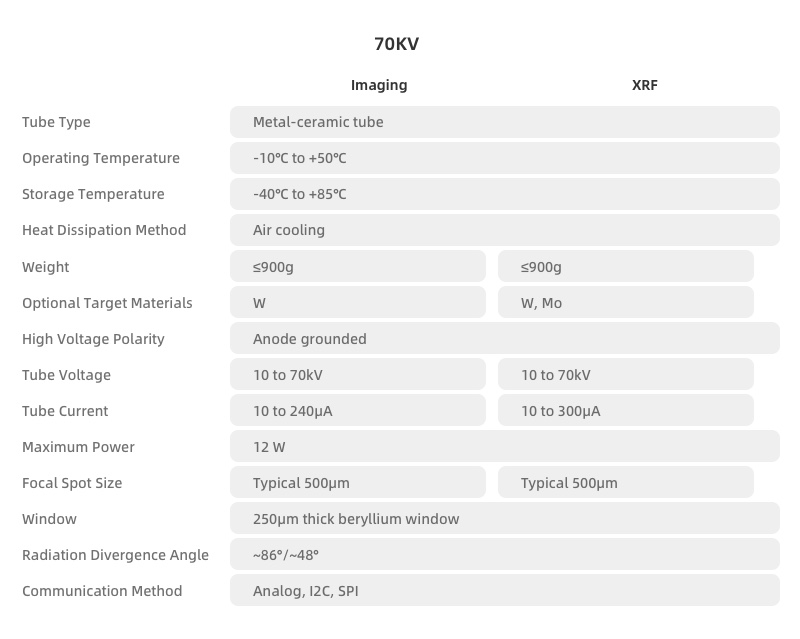

TUB00154/55 (70KV 12W) Series Tubes
TUB00154/55 X-ray Source is designed for portable and benchtop XRF instruments. Additionally, the size of its focal spot is ideal for X-ray imaging applications.

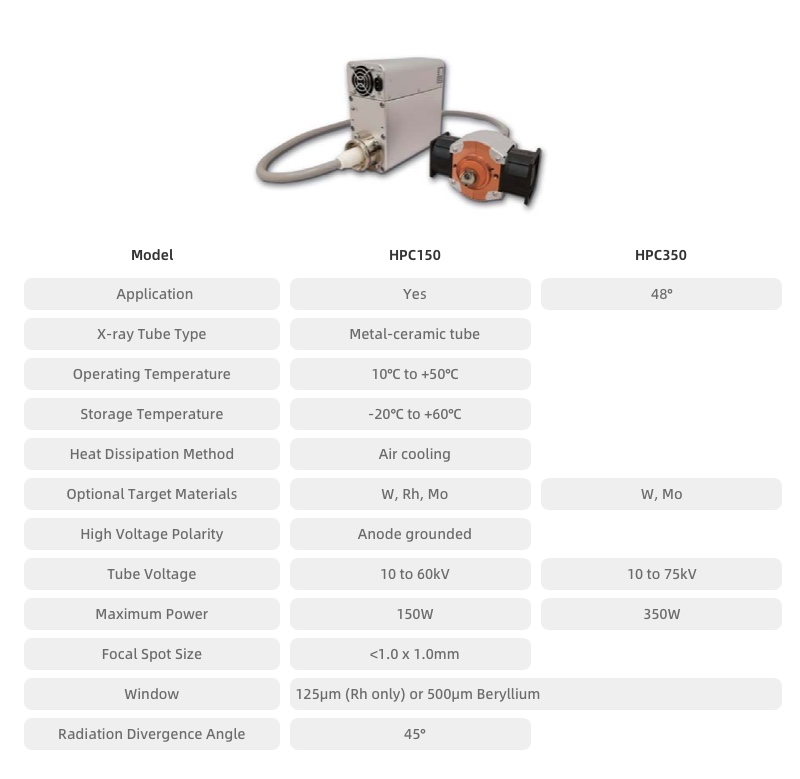

HPC150/350 High-Power Tubes
HPC150/350 X-ray Tube is designed for XRF and imaging applications. This tube features an air-cooled design, and its cooling system can be adapted to meet specific requirements. The push/pull fan configuration makes it easy to direct hot air outward.
Applications:
High-Power XRF - Heavy Elements
XRF for Scrap Metal Sorting
Thickness Measurement
Portable Medical Imaging
Food Inspection
Non-Destructive Testing (NDT)
FEATURES
Tightly coupled with the detector
Small-Size Portable Applications
Complete Radiation Shielding
Small Focal Spot for Imaging Applications
Vacuum-sealed Surface or Easy Integration
