NMI Vibrating Sample Magnetometer

NMI Vibrating Sample Magnetometer combines high sensitivity (5e-7 emu), excellent repeatability and simple handling. NMI-VSM is has an ergonomic design and software that facilitates the researcher’s use. VSM Drive Head is designed for easy and simple replacement of samples.

NMI Vibrating Sample Magnetometer



  • Excelent reproducibility

  • 2K-1000K operation

  • 5×10-7emu senitivity

  • Suitable fo liquids,powders or bulk samples



VSM Measurement Parameters



  • VSM oscillation frequency (calibrated):1-100Hz

  • VSM oscillation amplitude range of 0.1mm-5mm

  • Sample size up to 6mm diameter



Sensitivity Parameters



  • RMS sensitivity 5×10-7emu

  • High stability ±0.05%per day

  • Excelent reproducibility



System Properties



  • Fast and Easy to use with oven/cryostat always installed on the measurement system and ready for use

  • Air Cooled Magnet Power Supply

  • Magnetic field ramp rate:Determined by magnet and power supply

  • Temperature and magnetic field may be ramped during the measurement

  • Longitudinal configuration

  • RT System:Magnetic field is along horizontal axis,VSM vibration and moment detection are along vertical axis

  • Cryogenic System:Magnetic field,VSM vibration and moment detection all along vertical axis,up to 14T magnetic field

  • Cryogenic system properties



Geometry

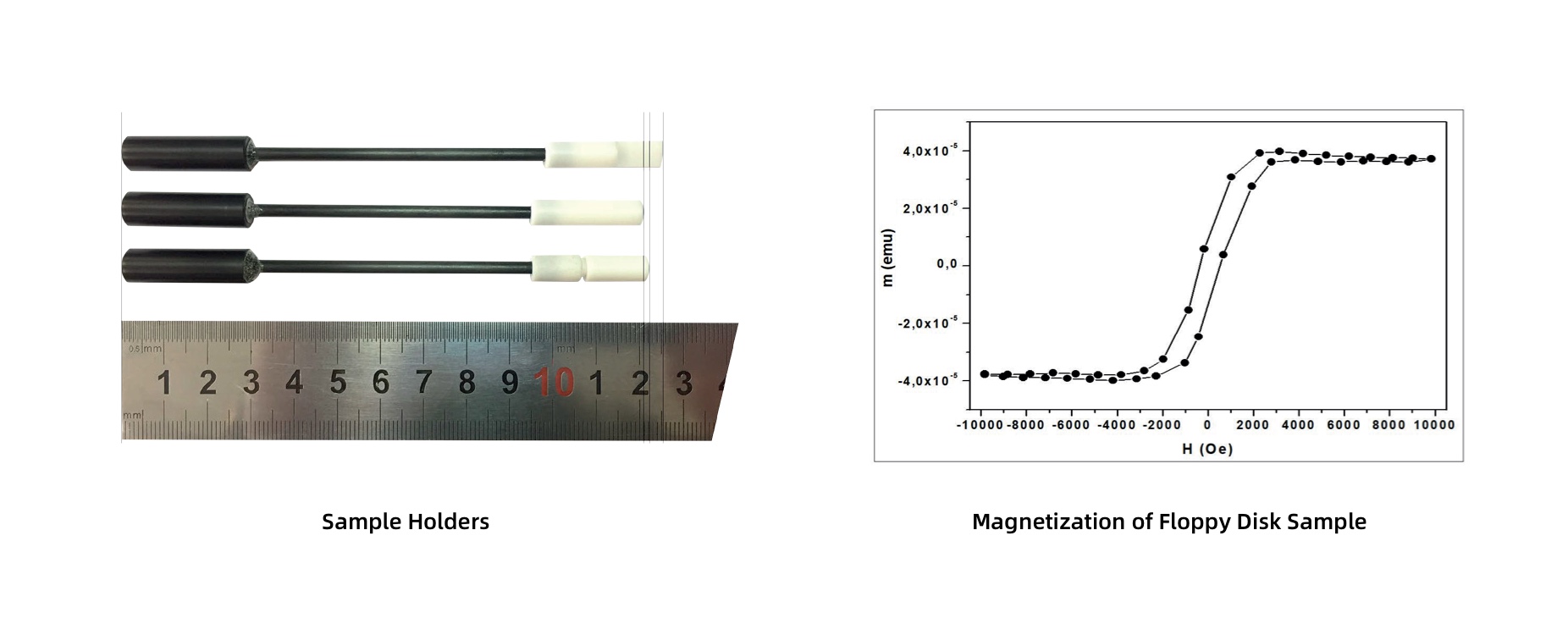

  • Sample holder suitable for bulk and thin film sample

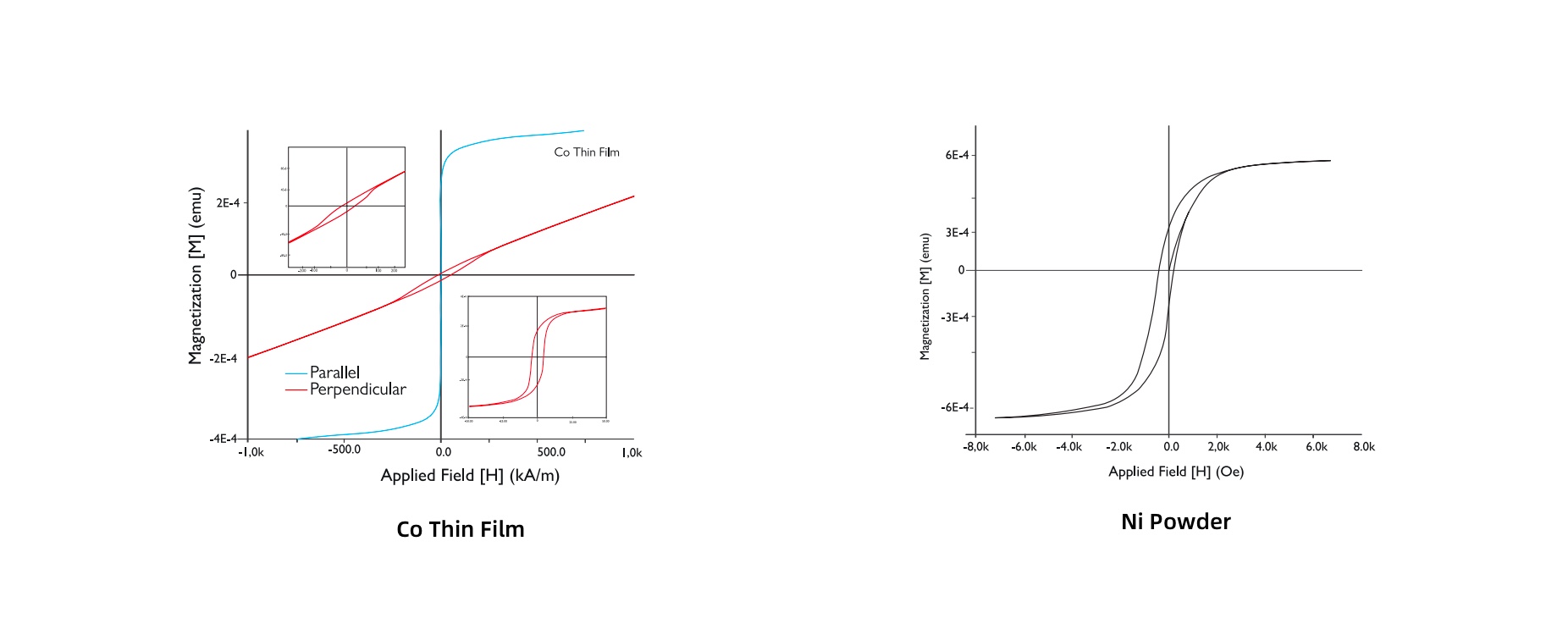

  • Sample holder configurable or parallel and vertical field measurements
